Underground mining mesh & ground support

MAKOMESH® pre-galvanised mesh panels are engineered for ground support in underground mining. Combining industry-leading weld strength, product quality and reliability. Proudly designed and manufactured in Australia.

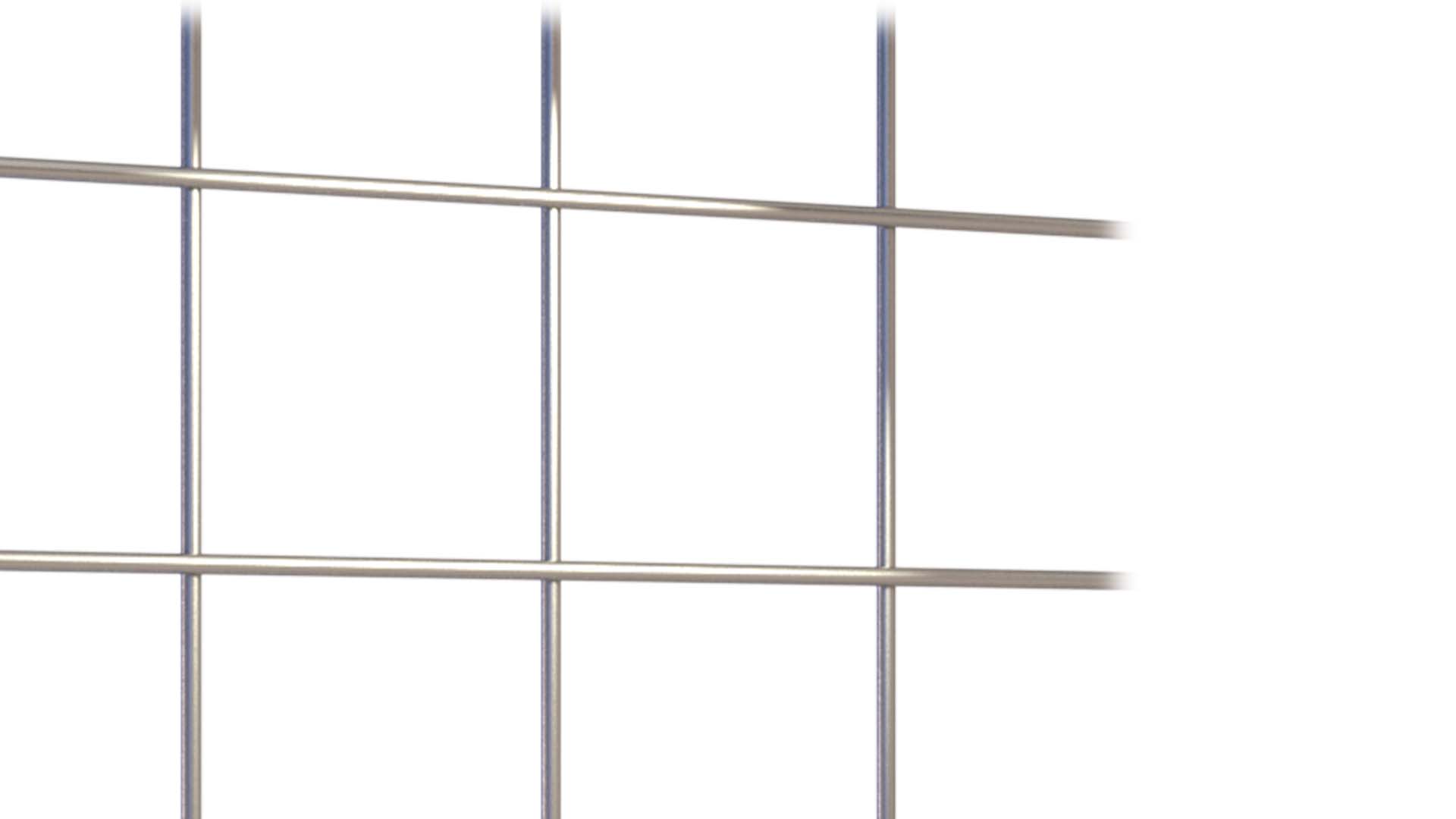

Industry leading weld shear strength

MAKOMESH® panels are engineered for the demands of underground mining, our servo hydraulic welding technology applies consistent, controlled force for a perfect weld joint.

>413 MPa wire tensile strength

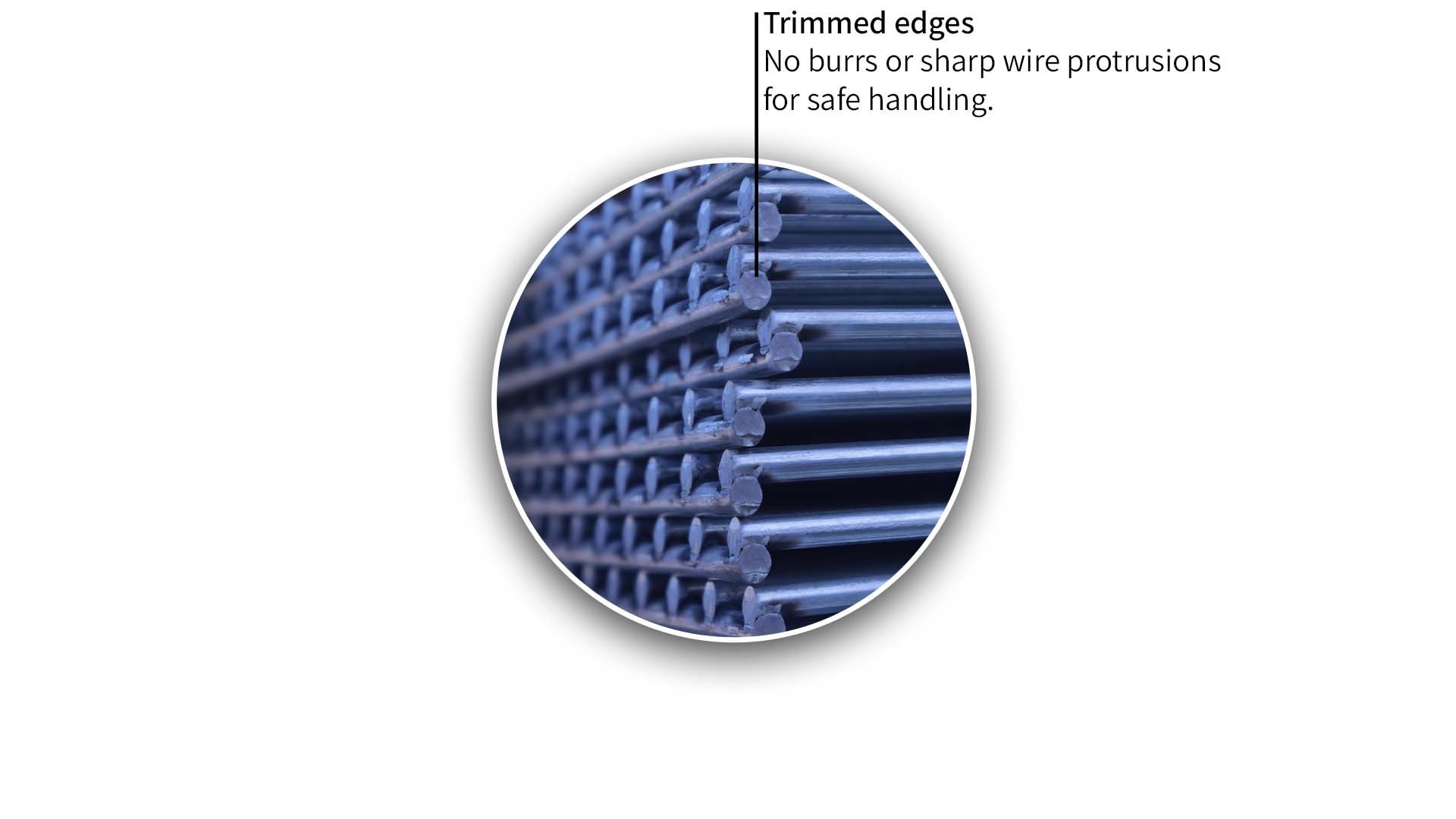

Perfectly trimmed, burr-free edges

Every MAKOMESH® panel is precisely trimmed to eliminate all wire burrs and sharp edges. Eliminating serious and preventable injury risk in hazardous underground conditions.

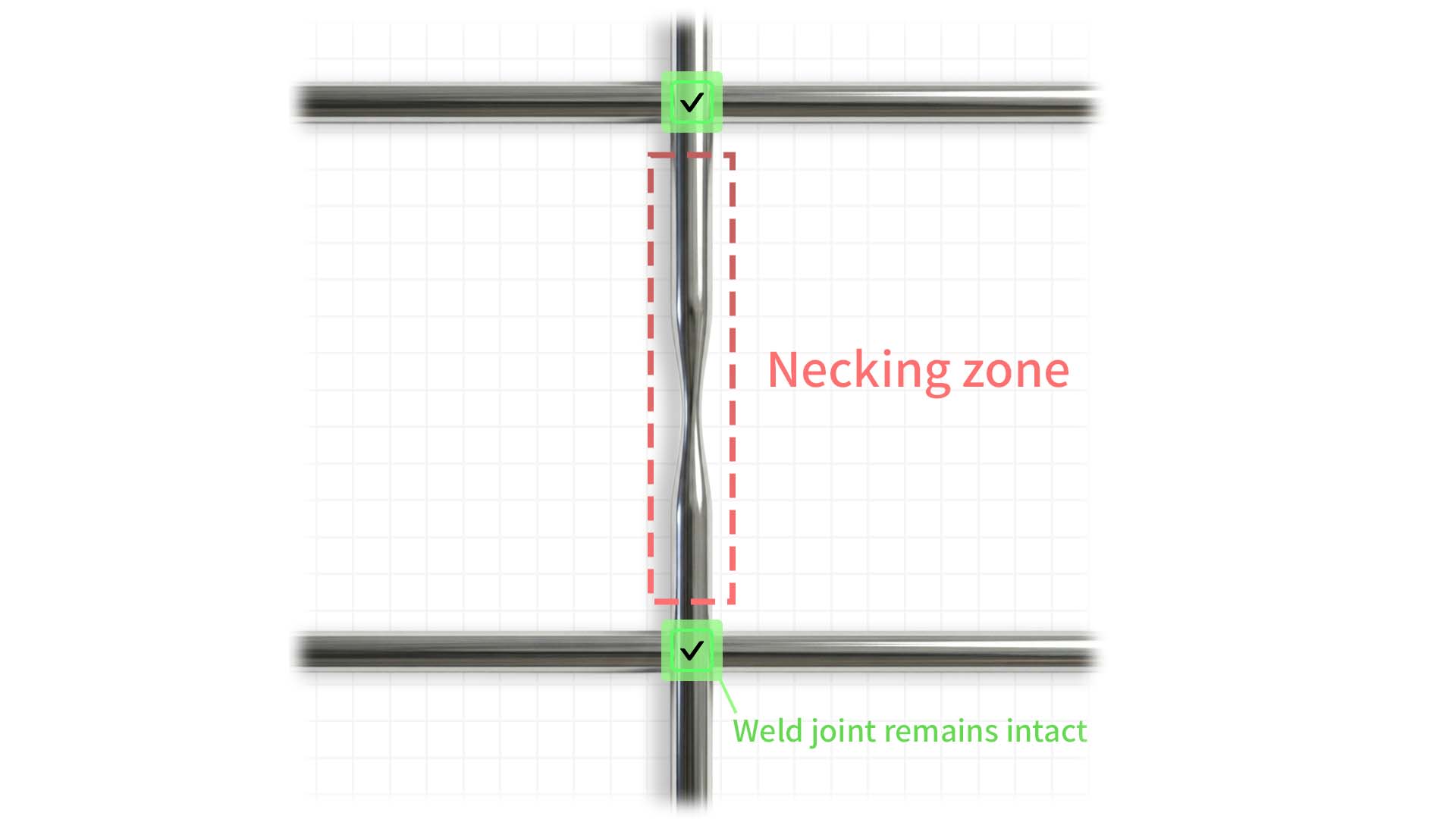

Failure mode by necking away from the weld joint

Under extreme stress, MAKOMESH® panels are designed to fail by wire necking away from the weld joint. The weld joint remains intact so that the mesh panel retains its structural integrity and continues to reinforce rock surfaces and retain loose material.

Proof of performance with every order

We undertake destructive testing for every order, documenting failure mode and weld strength for reassurance and proof of performance.

Watch the weld shear strength test

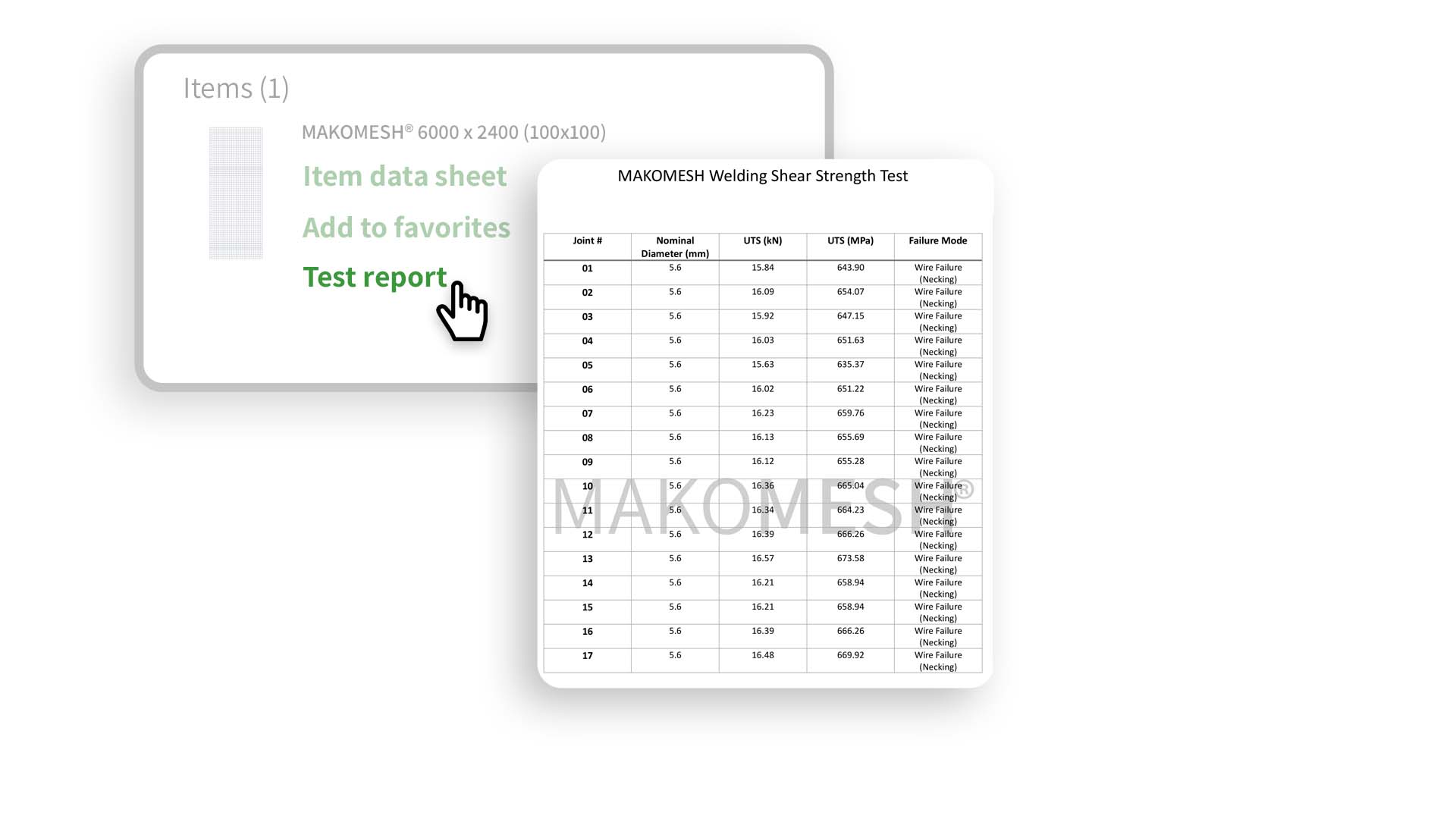

Weld shear strength test reports

Every MAKOMESH® underground mining mesh order includes a destructive weld shear strength test report documenting joint integrity, wire tensile strength and confirmed failure mode. Reports are automatically attached to your order in the MAKOMESH portal.

Download test report

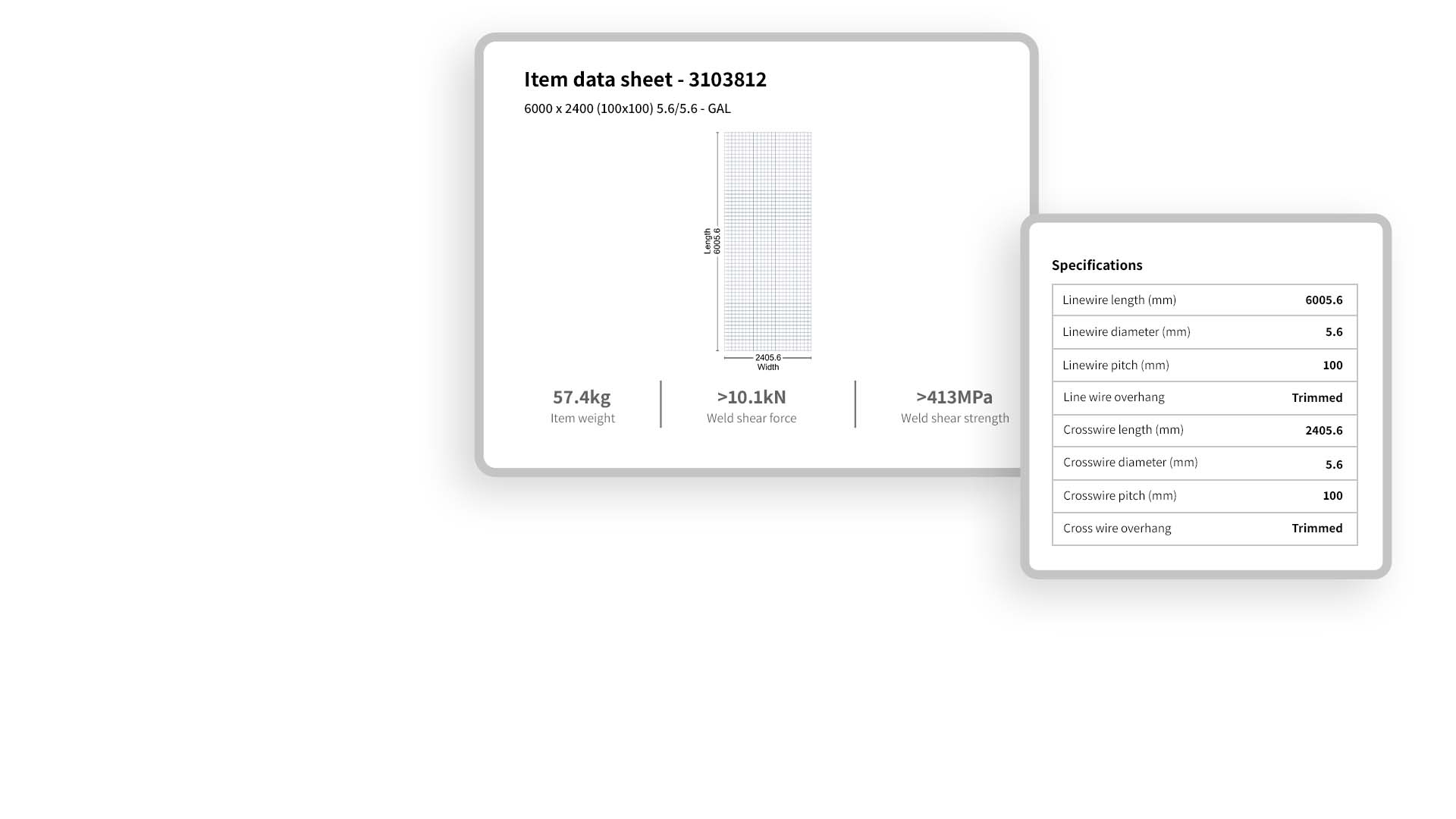

Item data sheet for every pre-galvanised mesh panel configuration

An item data sheet is available for every MAKOMESH® Item configuration specifying wire diameter, aperture size, panel dimensions, wire tensile strength, weld shear strength and weld shear force.

Download item data sheet

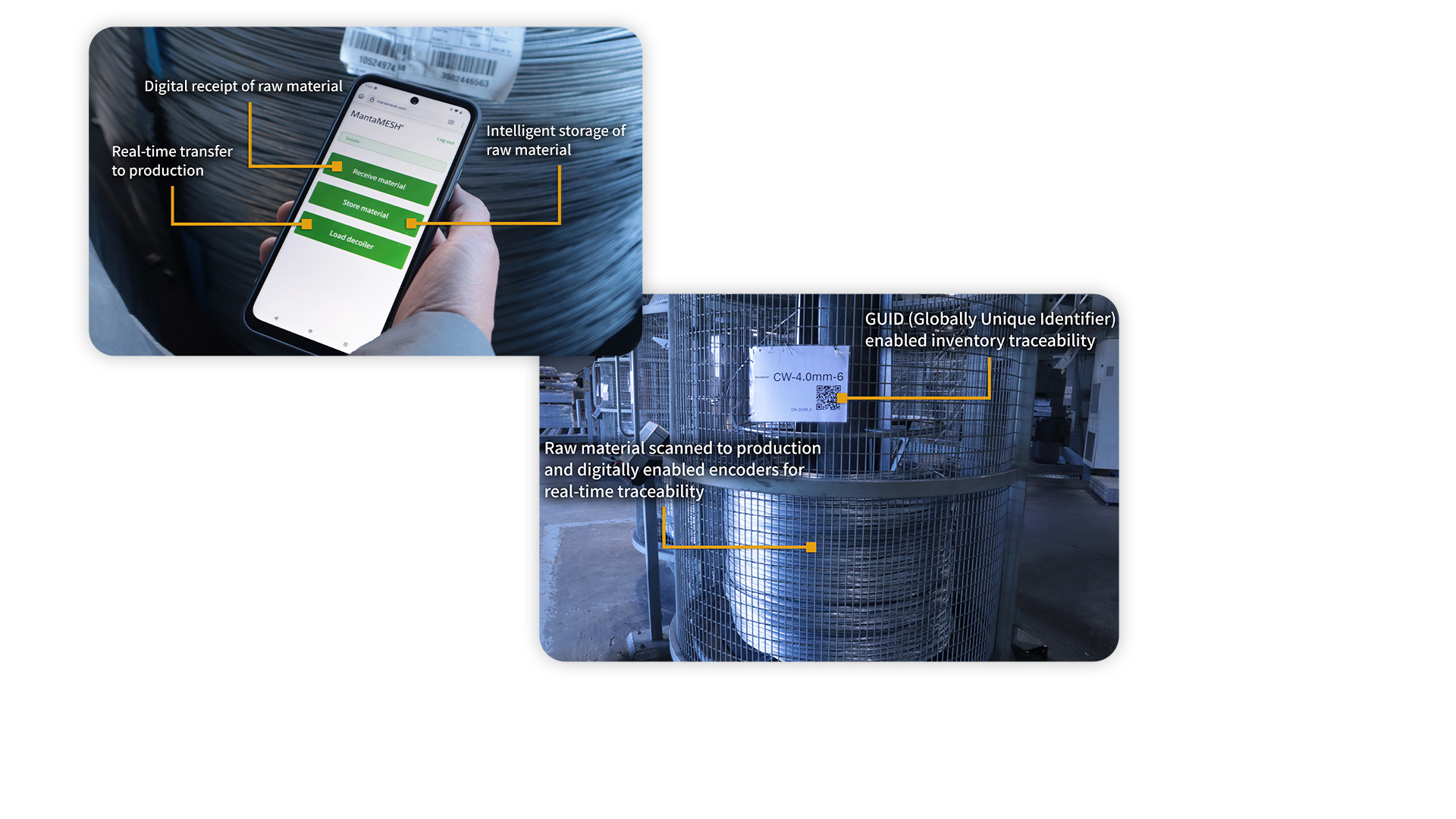

Raw material traceability, built into every item

Every MAKOMESH® panel is manufactured under a digitally enabled traceability system, powered by a Globally Unique Identifier (GUID) assigned to the raw material used in your order. From receipt through to production, every coil is tracked in real time delivering supply chain transparency, greater quality assurance and confidence in regulatory compliance.

Why use MAKOMESH?

Proudly Australian made, MAKOMESH® panels are manufactured locally and supplied directly to mine sites across Australia.

Frequently asked questions

High quality MAKOMESH® 358 security mesh panels and MAKOMESH® pre-galvanised welded mesh panels are produced right here in Australia.

All MAKOMESH products come with a unique Item Data Sheet with relevant product information and specifications. Your MAKOMESH reseller can provide you with this information.

The MAKOMESH Item Data Sheet available for every MAKOMESH Item includes the following precise information:

The Item weight (kg)
The weld strength (Nm)
The shear weld strength (MPa)
The tensile strength (MPa)

An item data sheet is available for every MAKOMESH Item configuration.

You can access the item data sheet (available as a PDF) by clicking on the green "Item data sheet" link for every item saved as a quote or order from the MAKOMESH portal.  

The item data sheet is available for every MAKOMESH item includes the following precise information:

- The item weight (kg)

- The weld strength (Nm)

- The shear weld strength (MPa)

- The tensile strength (MPa)

We manufacture MAKOMESH® 358 security mesh panels and MAKOMESH® pre-galvanised welded mesh panels from high quality pre-galvanised raw material.

Zinc coated (Pre-galvanised) wire in the following diameters:

4.0mm diameter (60 g/m2 coating)
5.0mm diameter (70 g/m2 coating)
5.6mm diameter (80 g/m2 coating)

Zinc-Aluminium coated wire (90%Zn & 10%Al) wire in the following diameters:

4.0mm diameter (260 g/m2 coating)
5.0mm diameter (280 g/m2 coating)
5.6mm diameter (290 g/m2 coating)
